The following procedure installs the Lyra ASIO and WDM audio drivers, and the Lyra Control Panel app, on your Windows PC. You must have Windows Vista or later (either 32-bit or 64-bit), and a spare USB 2.0 or USB 3.0 port.
• | Connect your Lyra to the mains supply and to a USB port on your PC with the cables provided. |
• | Insert the installation disc into a DVD-ROM drive on your PC. |
• | If the PC is set to 'Autoplay' , installation will begin automatically, otherwise double-click on the "setup.msi" icon in the root folder of the disc. |

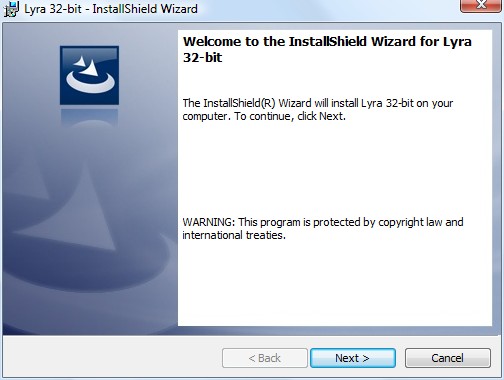

• | A welcome screen announces which version (32-bit or 64-bit) is being installed, and warns you to shut down other applications prior to installation. Do so and click 'Next': |

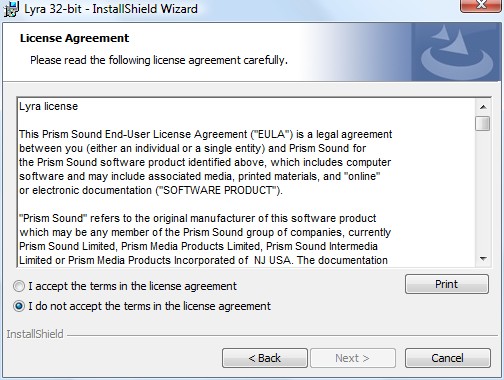

• | You will be asked to agree to the Lyra EULA - if you agree, select the 'accept' button and click 'Next': |

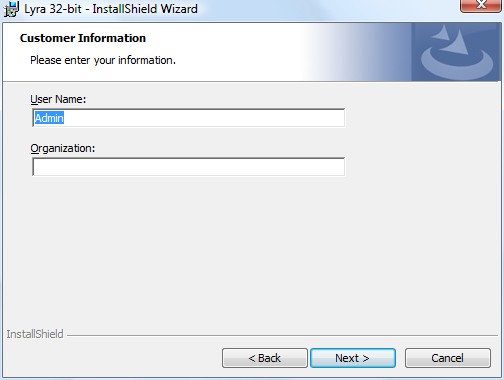

• | Confirm your user name and organisation, and click 'Next': |

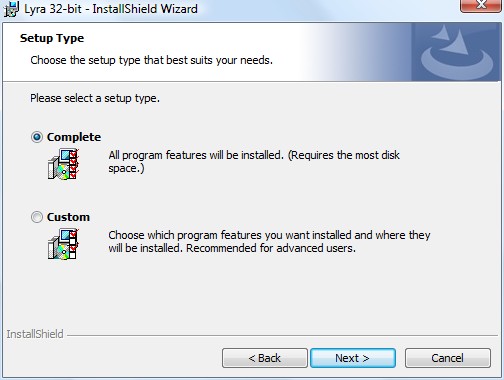

• | Choose 'Complete' to perform a default installation. To change the installation location or which components will be installed, you can choose 'Custom' (not recommended). Click 'Next': |

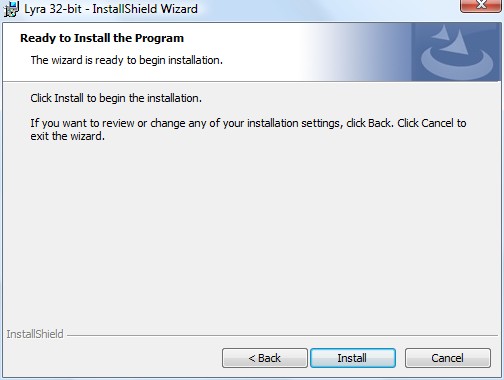

• | Final check. To proceed with installation, click 'Next': |

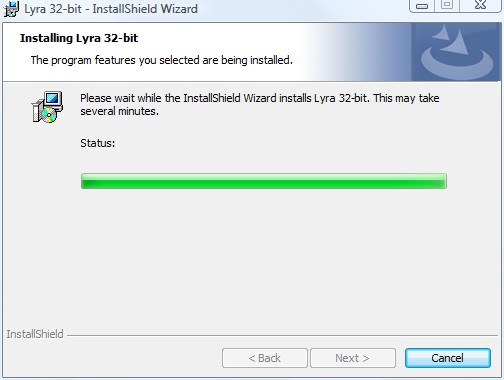

• | Installation will then proceed: |

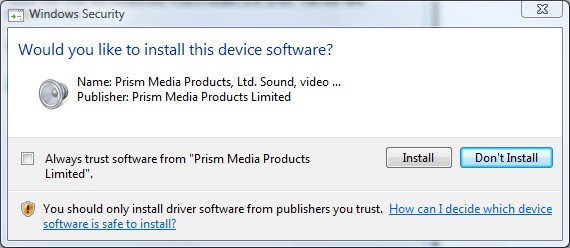

• | You will then be prompted to confirm that you would like to install the device driver. Click 'Install': |

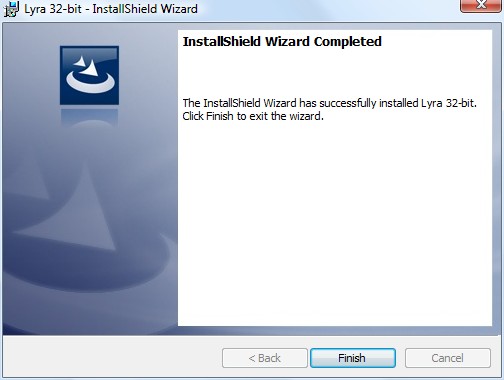

• | Installation will then complete, click 'Finish': |
The Lyra device's ports should now be visible to Windows and any applications as both ASIO and WDM audio ports.
|
