EXAMPLE DATA FOR WEB SITE REPORT

Reference/Serial Number: 51648

Overall Result: PASS

SUMMARY: RESULT
A01 Ampl, Phase, Gain
A02 Ampl, Phase vs Freq
A03 Gain vs Ampl
A04 THD+N,THD, nth-HD
A05 THD+N vs Freq
A06 THD+N vs Ampl
A07 Noise, SNR
A08 Crosstalk A to B
A09 Crosstalk B to A
A10 Crosstalk A to B vs Freq
A11 Crosstalk B to A vs Freq
D01 Ampl, Phase, Gain
D02 Ampl, Phase vs Freq
D03 Gain vs Ampl
D04 THD+N, THD, nth-HD
D05 THD+N vs Freq
D06 THD+N vs Ampl
D07 Noise, SNR
D08 Crosstalk A to B
D09 Crosstalk B to A
D10 Crosstalk A to B vs Freq
D11 Crosstalk B to A vs Freq
D13 Digital Transparency
M01 Multitone_Analogue_12Tones OK
M02 60k freq resp
KEY: = Test passes, X = Test fails, OK = Test has run but has no limit checking, (X) = Test has failed to run or has not completed,
[√] = Test passes but is not required, [X] = Test fails but is not required, ? = Test is required but has not been run.
- = Test is not required.

Back to top



A01 Ampl, Phase, Gain: PASSED

Measured at 22/12/2019 06:43:03

Signal Analyzer Readings
RMS amplitude (Channel A)4.000 dBu < 6 dBu
> 2 dBu
RMS amplitude (Channel B)4.001 dBu < 6 dBu
> 2 dBu
Inter-channel phase0.00 ° < 10 °
> -10 °


CTA Readings
Gain (Channel A RMS)1 RELATIVE GAIN < 1.01 RELATIVE GAIN
> 0.99 RELATIVE GAIN
Gain (Channel B RMS)1 RELATIVE GAIN < 1.01 RELATIVE GAIN
> 0.99 RELATIVE GAIN
Settings: Generator relative, 22 Hz - 22 kHz, unweighted RMS with 1/3rd octave band-pass filter at the generator frequency

Back to top



A02 Ampl, Phase vs Freq: PASSED

Measured at 22/12/2019 06:43:16

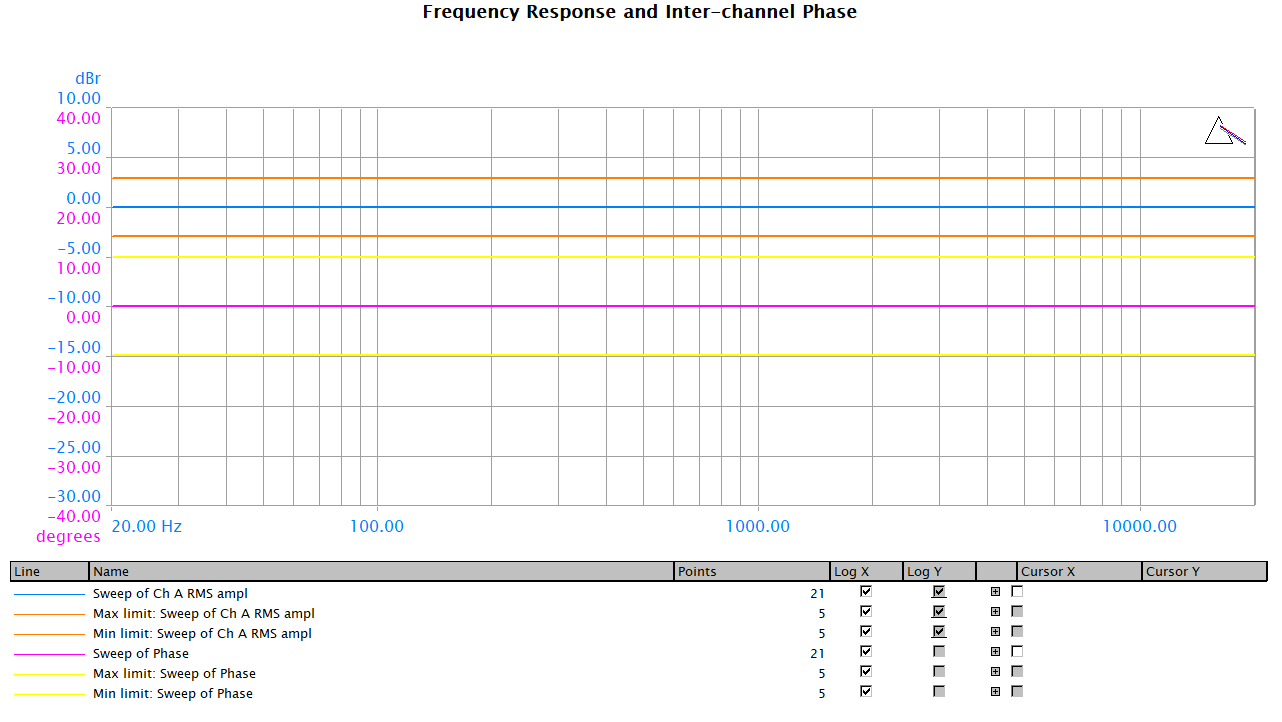

A02 Ampl, Phase vs Freq


A02 Ampl, Phase vs Freq
Back to top



A03 Gain vs Ampl: PASSED

Measured at 22/12/2019 06:43:38

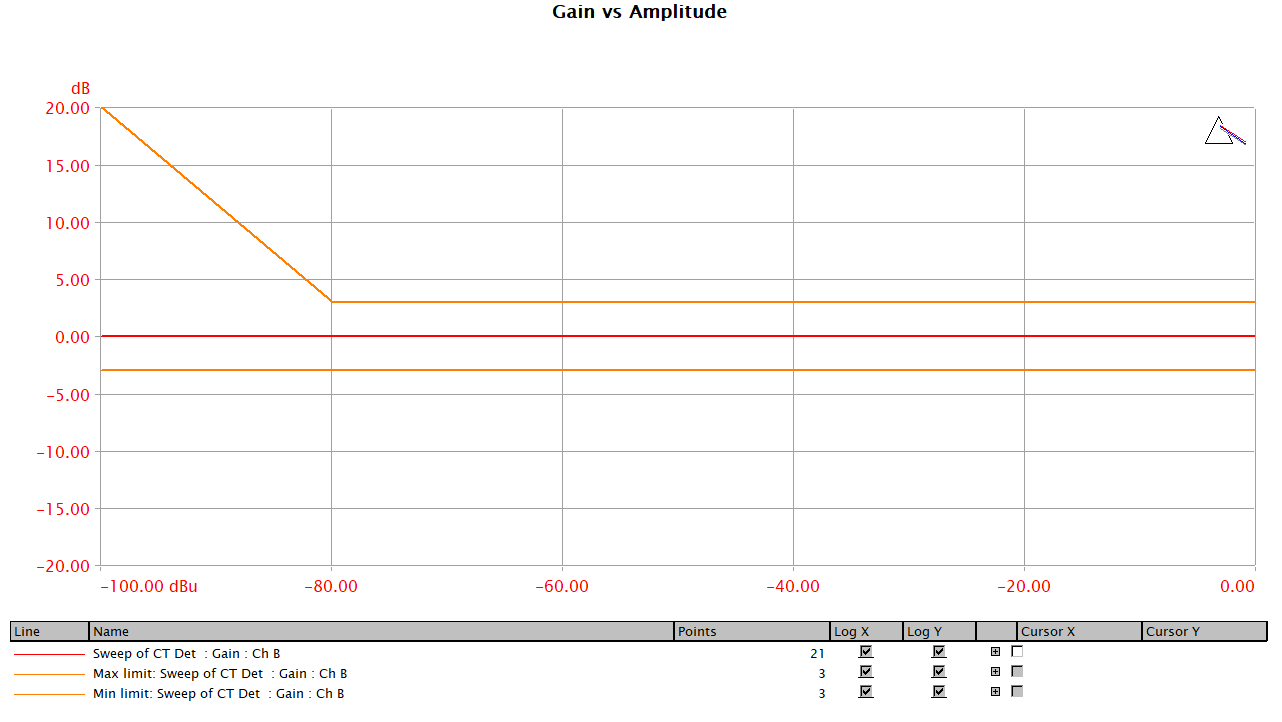

A03 Gain vs Ampl


A03 Gain vs Ampl
Back to top



A04 THD+N,THD, nth-HD: PASSED

Measured at 22/12/2019 06:43:59

CTA Readings
THD+N - relative (Channel A RMS)-109.502 dB < -80 dB
THD+N - relative (Channel B RMS)-110.548 dB < -80 dB
Settings: Self relative, 22 Hz - 22 kHz, unweighted RMS with 1/3rd octave band-reject filter at the generator frequency


FFT Detector Readings
THD (Channel A)-110.465 dB < -80 dB
THD (Channel B)-111.594 dB < -80 dB
FFTD 1 Settings: Self relative, 22 Hz - 22 kHz, unweighted with band-pass notch filters from the 2nd to 10th harmonics
2nd Harmonic Distortion (Channel A)-114.871 dB < -80 dB
2nd Harmonic Distortion (Channel B)-113.730 dB < -80 dB
FFTD 2 Settings: Self relative, 22 Hz - 22 kHz, unweighted with band-pass notch filter at the 2nd harmonic
3rd Harmonic Distortion (Channel A)-113.654 dB < -80 dB
3rd Harmonic Distortion (Channel B)-118.688 dB < -80 dB
FFTD 3 Settings: Self relative, 22 Hz - 22 kHz, unweighted with band-pass notch filter at the 3rd harmonic

Back to top



A05 THD+N vs Freq: PASSED

Measured at 22/12/2019 06:44:15

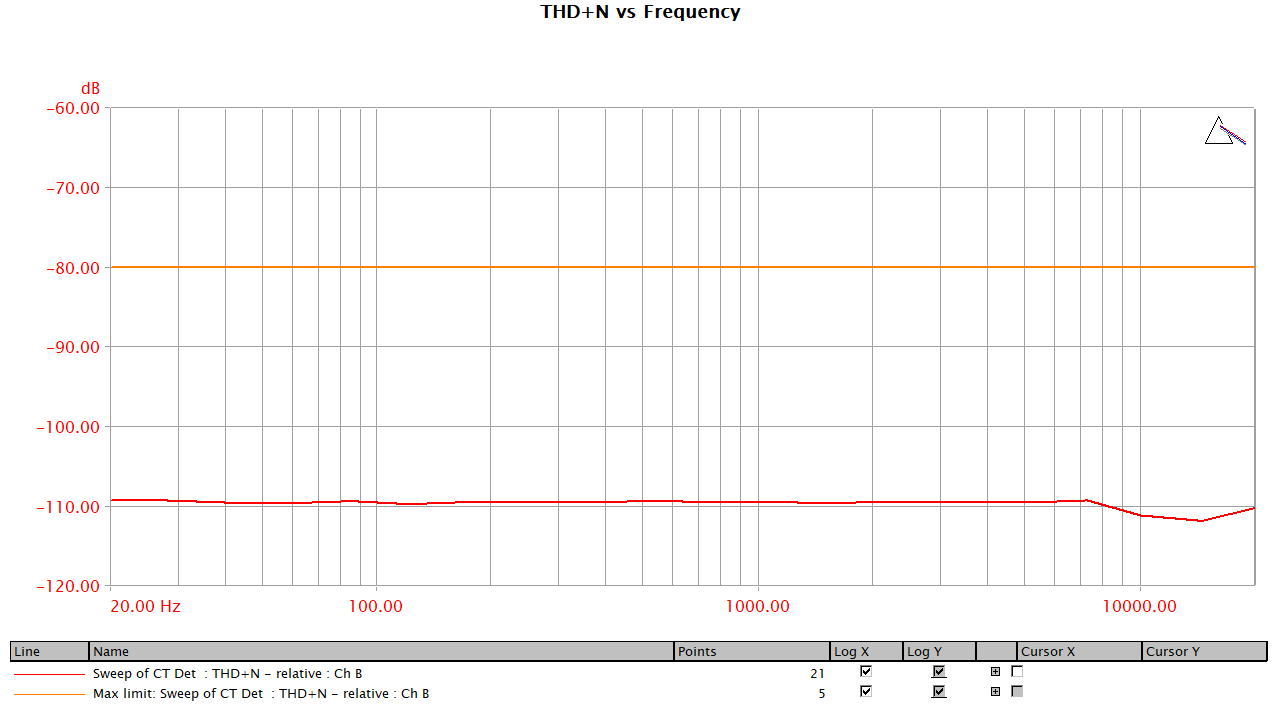

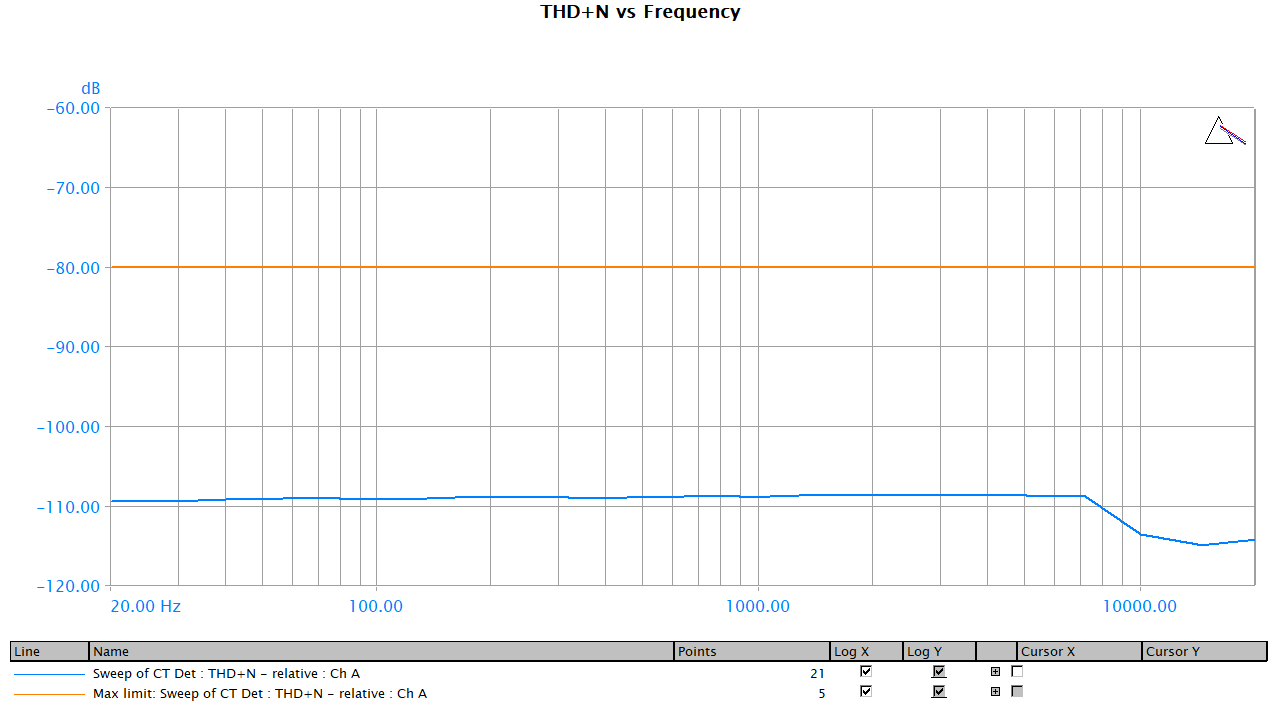

A05 THD+N vs Freq


A05 THD+N vs Freq
Back to top

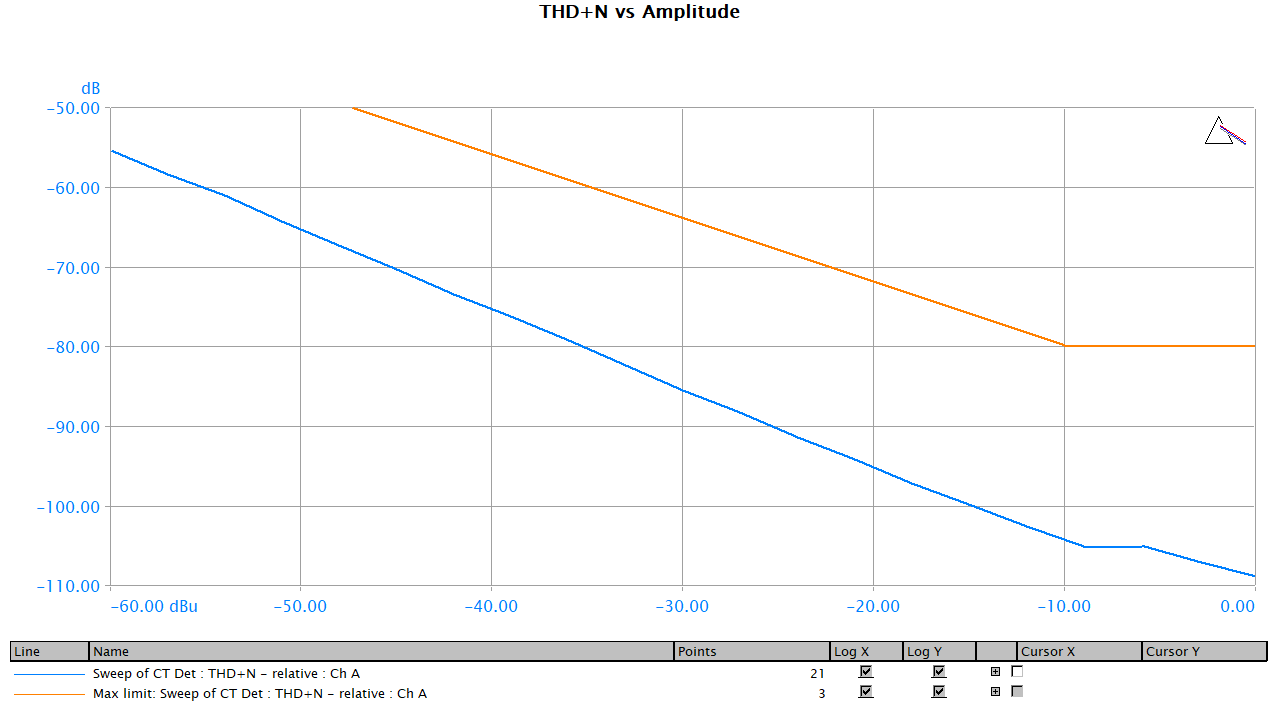

A06 THD+N vs Ampl: PASSED

Measured at 22/12/2019 06:44:40


A06 THD+N vs Ampl


A06 THD+N vs Ampl
Back to top



A07 Noise, SNR: PASSED

Measured at 22/12/2019 06:45:03

FFT Detector Readings
THD+N - absolute (Channel A)-115.784 dBu < -80 dBu
THD+N - absolute (Channel B)-115.203 dBu < -80 dBu
FFTD 1 Settings: 22 Hz - 22 kHz, unweighted with 1/3rd octave band-reject filter at the input frequency
SNR rel. 100V (Ch A)-157.901 dBr < 157.781512659124 dBr
> -242.218487340876 dBr
SNR rel. 100V (Ch B)-157.531 dBr < 157.781512659124 dBr
> -242.218487340876 dBr
FFTD 2 Settings: 22 Hz - 22 kHz, unweighted with 1/3rd octave band-reject filter at the input frequency

Back to top



A08 Crosstalk A to B: PASSED

Measured at 22/12/2019 06:45:17

CTA Readings
Cross-talk (Channel B RMS)-149.606 dB < -80 dB
Settings: Channel relative, 22 Hz - 22 kHz, unweighted RMS with 1/24th octave band-pass filter at the opposite channel generator frequency

Back to top



A09 Crosstalk B to A: PASSED

Measured at 22/12/2019 06:45:29

CTA Readings
Cross-talk (Channel A RMS)-145.796 dB < -80 dB
Settings: Channel relative, 22 Hz - 22 kHz, unweighted RMS with 1/24th octave band-pass filter at the opposite channel generator frequency

Back to top



A10 Crosstalk A to B vs Freq: PASSED

Measured at 22/12/2019 06:45:42


A10 Crosstalk A to B vs Freq
Back to top



A11 Crosstalk B to A vs Freq: PASSED

Measured at 22/12/2019 06:46:02


A11 Crosstalk B to A vs Freq
Back to top



D01 Ampl, Phase, Gain: PASSED

Measured at 22/12/2019 06:46:22

Signal Analyzer Readings
RMS amplitude (Channel A)-17.997 dBFS < -17 dBFS
> -19 dBFS
RMS amplitude (Channel B)-18.000 dBFS < -17 dBFS
> -19 dBFS
Inter-channel phase-0.00 ° < 10 °
> -10 °


CTA Readings
Gain (Channel A RMS)-0.000 dB < 3 dB
> -3 dB
Gain (Channel B RMS)-0.000 dB < 3 dB
> -3 dB
Settings: Generator relative, 22 Hz - 22 kHz, unweighted RMS with 1/3rd octave band-pass filter at the generator frequency

Back to top



D02 Ampl, Phase vs Freq: PASSED

Measured at 22/12/2019 06:46:36

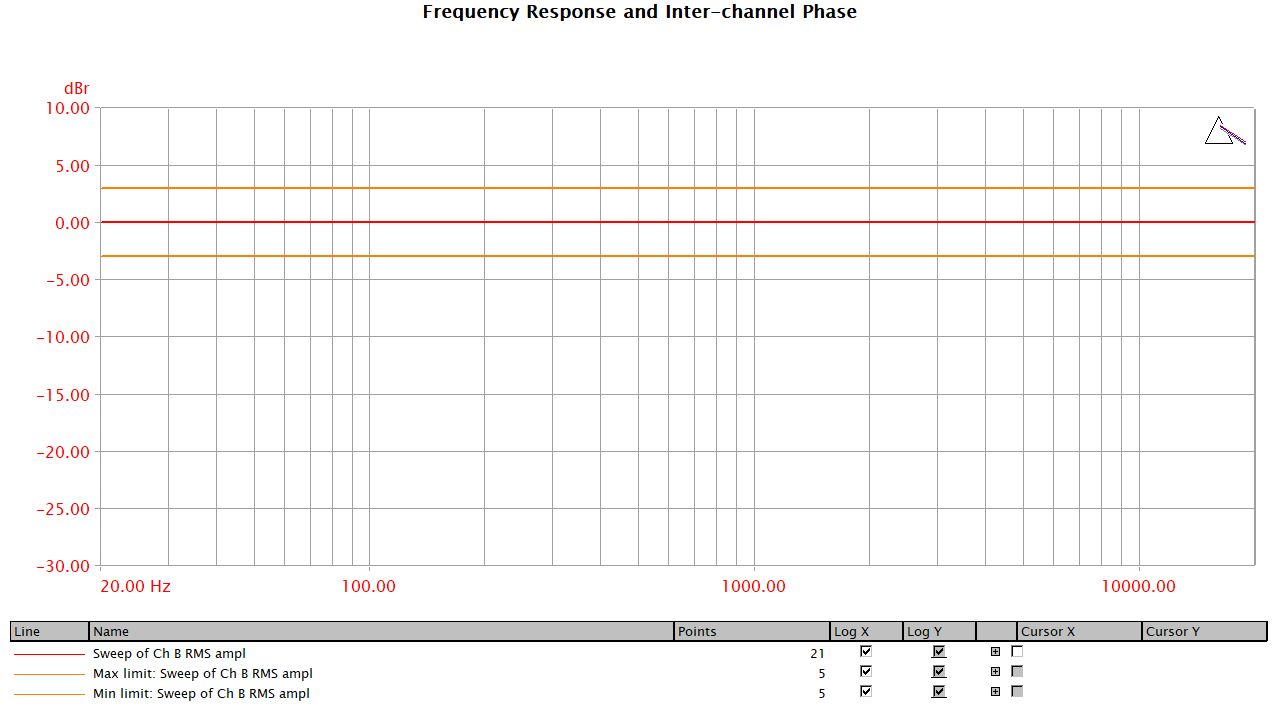

D02 Ampl, Phase vs Freq


D02 Ampl, Phase vs Freq
Back to top



D03 Gain vs Ampl: PASSED

Measured at 22/12/2019 06:46:59

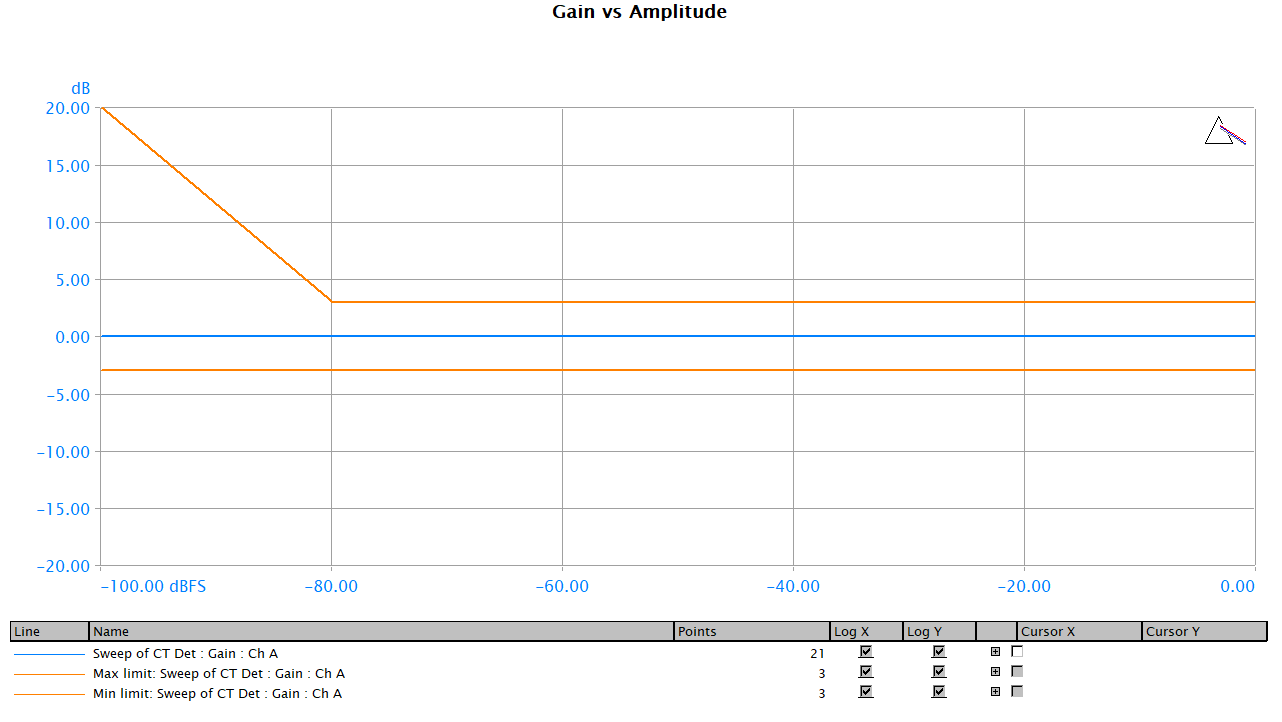

D03 Gain vs Ampl


D03 Gain vs Ampl
Back to top



D04 THD+N, THD, nth-HD: PASSED

Measured at 22/12/2019 06:47:20

CTA Readings
THD+N - relative (Channel A RMS)-123.946 dB < -80 dB
THD+N - relative (Channel B RMS)-124.050 dB < -80 dB
Settings: Self relative, 22 Hz - 22 kHz, unweighted RMS with 1/3rd octave band-reject filter at the generator frequency


FFT Detector Readings
THD (Channel A)-138.896 dB < -80 dB
THD (Channel B)-139.111 dB < -80 dB
FFTD 1 Settings: Self relative, 22 Hz - 22 kHz, unweighted with band-pass notch filters from the 2nd to 10th harmonics
2nd Harmonic Distortion (Channel A)-146.921 dB < -80 dB
2nd Harmonic Distortion (Channel B)-147.938 dB < -80 dB
FFTD 2 Settings: Self relative, 22 Hz - 22 kHz, unweighted with band-pass notch filter at the 2nd harmonic
3rd Harmonic Distortion (Channel A)-146.651 dB < -80 dB
3rd Harmonic Distortion (Channel B)-147.644 dB < -80 dB
FFTD 3 Settings: Self relative, 22 Hz - 22 kHz, unweighted with band-pass notch filter at the 3rd harmonic

Back to top



D05 THD+N vs Freq: PASSED

Measured at 22/12/2019 06:47:37

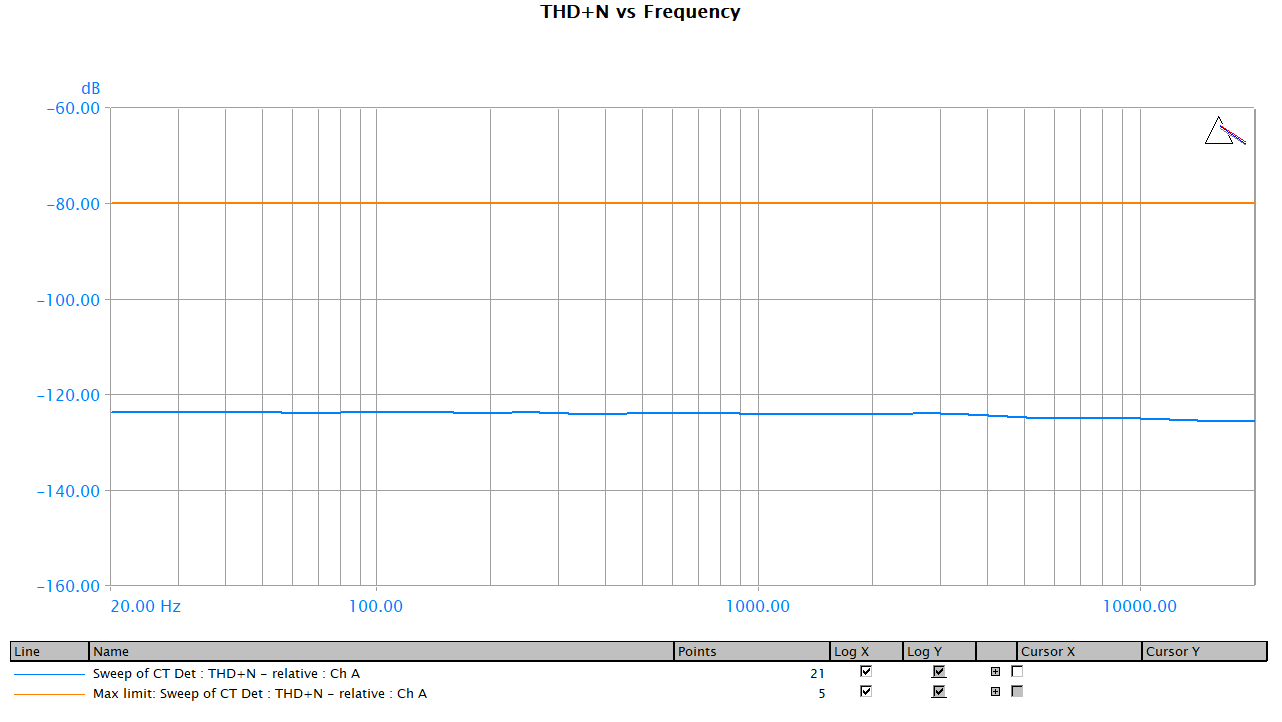

D05 THD+N vs Freq


D05 THD+N vs Freq
Back to top



D06 THD+N vs Ampl: PASSED

Measured at 22/12/2019 06:48:02

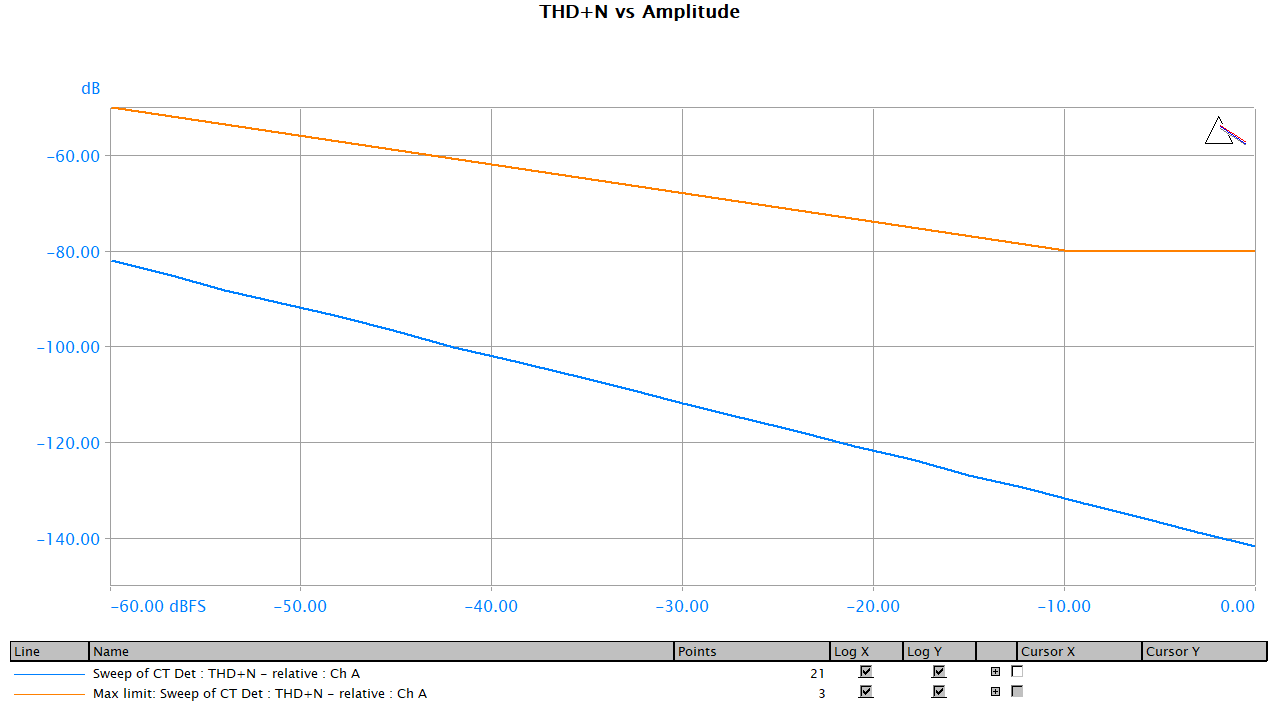

D06 THD+N vs Ampl


D06 THD+N vs Ampl
Back to top



D07 Noise, SNR: PASSED

Measured at 22/12/2019 06:48:24

FFT Detector Readings
Noise (unweighted) (Channel A)-142.070 dBFS < -80 dBFS
Noise (unweighted) (Channel B)-142.073 dBFS < -80 dBFS
FFTD 1 Settings: 22 Hz - 22 kHz, unweighted with window notch (14 bins) band-reject filter at the generator frequency
SNR (Channel A)-124.183 dBr < -80 dBr
SNR (Channel B)-124.445 dBr < -80 dBr
FFTD 2 Settings: 22 Hz - 22 kHz, unweighted with 1/3rd octave band-reject filter at the generator frequency

Back to top



D08 Crosstalk A to B: PASSED

Measured at 22/12/2019 06:48:39

CTA Readings
Cross-talk (Channel B RMS)-152.576 dB < -80 dB
Settings: Channel relative, 22 Hz - 22 kHz, unweighted RMS with 1/24th octave band-pass filter at the opposite channel generator frequency

Back to top



D09 Crosstalk B to A: PASSED

Measured at 22/12/2019 06:48:51

CTA Readings
Cross-talk (Channel A RMS)-148.556 dB < -80 dB
Settings: Channel relative, 22 Hz - 22 kHz, unweighted RMS with 1/24th octave band-pass filter at the opposite channel generator frequency

Back to top



D10 Crosstalk A to B vs Freq: PASSED

Measured at 22/12/2019 06:49:05


D10 Crosstalk A to B vs Freq
Back to top



D11 Crosstalk B to A vs Freq: PASSED

Measured at 22/12/2019 06:49:24


D11 Crosstalk B to A vs Freq
Back to top



D13 Digital Transparency: PASSED

Measured at 22/12/2019 06:49:43

Digital Inputs Channel Check
Channel Check (Both channels) PASS 24bits for 10s

Back to top



M01 Multitone_Analogue_12Tones: Not limit checked.

Measured at 22/12/2019 06:50:09

FFT Detector Readings
User: TD (Channel A)-94.228 dB Not limit checked.
User: TD (Channel B)-95.757 dB Not limit checked.
FFTD 1 Settings: User: TD
User: Noise (Channel A)-100.565 dBu Not limit checked.
User: Noise (Channel B)-100.922 dBu Not limit checked.
FFTD 2 Settings: User: Noise
User: TD+N (Channel A)-92.126 dB Not limit checked.
User: TD+N (Channel B)-93.224 dB Not limit checked.
FFTD 3 Settings: User: TD+N
User: LF Rolloff (Channel A)-2.260 dB Not limit checked.
User: LF Rolloff (Channel B)-2.260 dB Not limit checked.
FFTD 4 Settings: User: LF Rolloff
User: HF Rolloff (Channel A)-1.013 dB Not limit checked.
User: HF Rolloff (Channel B)-1.012 dB Not limit checked.
FFTD 5 Settings: User: HF Rolloff

Back to top

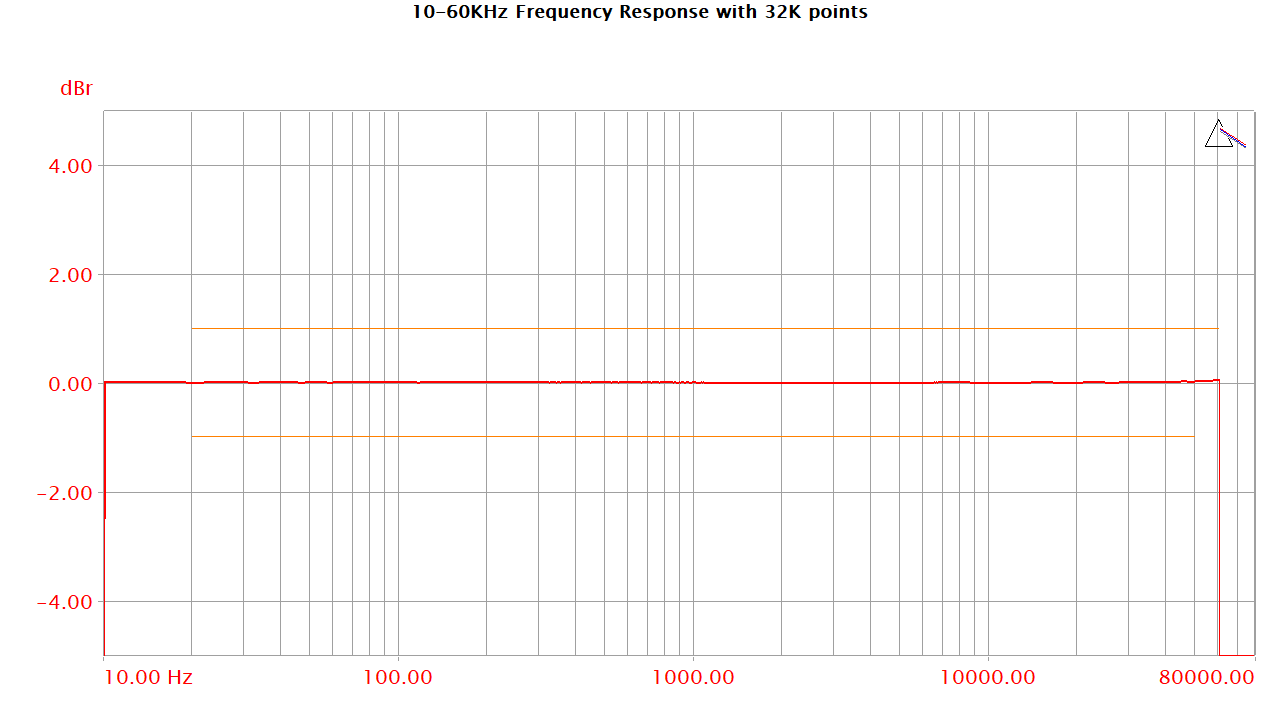

M02 60k freq resp: PASSED

Measured at 22/12/2019 06:50:31

Signal Analyzer Readings
RMS amplitude (Selected : Ch A)5.999 dBu < 8 dBu
> 4 dBu
RMS amplitude (Non-selected : Ch B)6.176 dBu < 8 dBu
> 4 dBu



M02 60k freq resp
