Front Panel
|
|
Instrument inputs 1&2:
|
Two 6.3mm mono jack sockets, auto-select to analog inputs 1&2 when plugged
|
Headphone outputs 1&2:
|
Two 6.3mm stereo jack sockets, each with illuminated volume control
|
Master volume control:
|
Assignable to any selection of outputs, with LED halo indication
|
Level meters:
|
Multi-segment, multi-color bargraphs with overload indication; eight for analog, two for digital, assignable to inputs or outputs
|
Input selector indicators:
|
Indicate modes of analog inputs 1-4 as mic/line/instrument; plus phantom power indicator for mic mode
|
Overkiller-active indicators:
|
For every analog input, lit when Overkiller limiters are acting
|
Digital input indicators:
|
Input unlocked, and SRC (sample-rate converter) selected
|
Digital output indicator:
|
SRC (sample-rate converter) selected
|
Sync indicator:
|
Master, lit when interface is providing system sync
|
Standby button:
|
With standby indicator (also flashes when unit is in 'identify' mode)
|
Rear Panel
|
|
Mic/Line inputs 1-4:
|
Four combo connectors with XLR sockets for mic input and 6.3mm TRS jack sockets for line input (balanced or unbalanced)
|
Line inputs 5-8:
|
Four 6.3mm TRS jack sockets (balanced or unbalanced)
|
Line outputs 1-8:
|
Eight 6.3mm TRS jack sockets (balanced or unbalanced)
|
Digital inputs:
|
RCA socket for S/PDIF in, TOSlink for S/PDIF or ADAT in; (RCA can operate as AES3 input using XLR-RCA adapter supplied)
|
Digital outputs:
|
RCA socket for S/PDIF out, TOSlink for S/PDIFor ADAT out; (RCA can operate as AES3 output using RCA-XLR adapter supplied)
|
MIDI I/O:
|
Two 5-pin DIN sockets, in and out
|
Wordclock I/O:
|
Two BNC sockets, output and input (75R)
|
FireWire ports:
|
Two IEEE1394A ports (allowing cascading of multiple units)
|
Mains power:
|
3-pin 6A IEC inlet
|
Software Support
|
|
Mac OS support:
|
OS X 10.3 or later, PPC or Intel platform
|
Windows OS support:
|
Windows XP, Vista or later
|
Mac audio driver:
|
Core Audio device
|
Windows audio driver:
|
WDM and ASIO devices
|
Control Panel applet:
|
Graphical user interface for control of single or multiple Orpheus units under Mac OS X or Windows
|
Analog Line Inputs
|
|
Configuration:
|
Electronically balanced, with fully-balanced analog signal path
|
Input sensitivity:
|
Switchable ‘+4dBu’ (0dBFS=+18dBu) or ‘-10dBV’ (0dBFS=+6dBu)
|
Input impedance:
|
14.5kR
|
Unbalanced mode:
|
Automatic
|

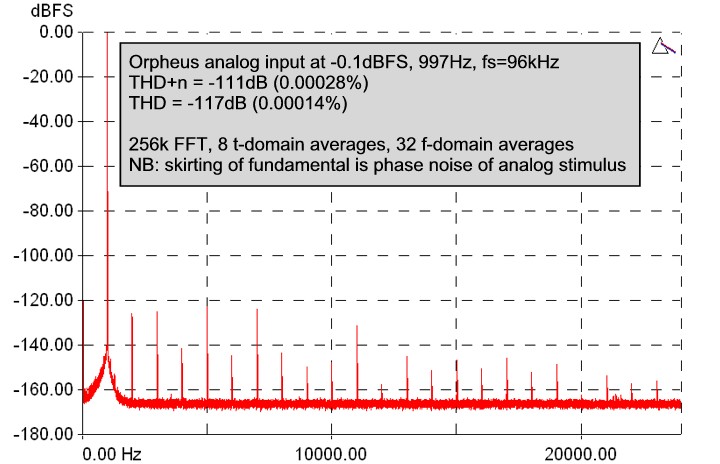

Total harmonic distortion:
|
-117dB (0.00014%, -0.1dBFS)
|
THD+n:
|
-111dB (0.00028%, -0.1dBFS)
|

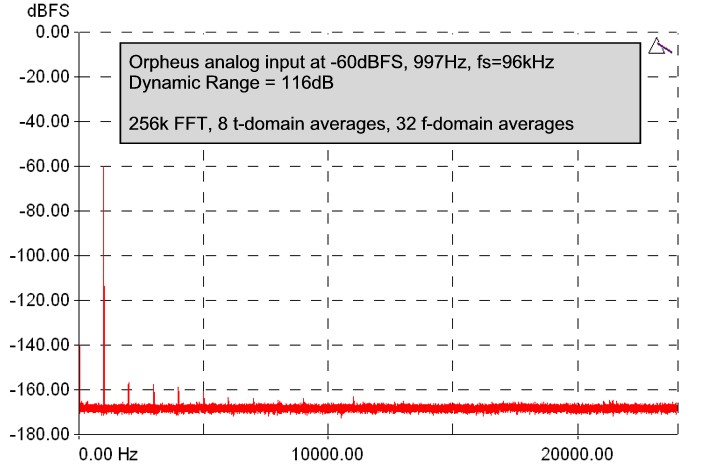

Dynamic range:
|
116dB (-60dBFS)
|
Gain accuracy:
|
±0.05dB
|
LF roll-off:
|
-0.05dB at 8Hz; -3dB at <1Hz
|
HF roll-off:
|
fs=44.1kHz: -0.05dB at 21.1kHz; -3dB at 22.0kHz
fs=48kHz: -0.05dB at 23.0kHz; -3dB at 23.9kHz
fs=96kHz: -0.05dB at 32.0kHz, -3dB at 47.9kHz
fs=192kHz: -0.05dB at 32.0kHz, -3dB at 78.0kHz
|
CMRR:
|
20Hz..20kHz: >70dB
|
Inter-channel cross-talk:
|
1kHz: <-140dB; 20Hz..20kHz: <-120dB
|
Inter-channel phase:
|
10Hz..5kHz: ±0.25º, 5kHz..20kHz: ±1.0º, 20kHz..50kHz: ±2.0º
|
Overkiller:
|
Progressive limiter, auto-aligning, selectable per channel
|
Impact filter:
|
High-pass filter, -3dB at 80Hz, 40dB/decade (selectable for channels 1-4; whether in line, mic or instrument mode)
|
RIAA de-emphasis filter:
|
Response accuracy: ±0.22dB at fs=44.1kHz; ±0.14dB at fs=48kHz;±0.015dB at all other sample rates
|
M-S matrix:
|
Allows direct connection of mid-side mics, or non-matrix mic-preamps (selectable for channels 1-4; whether in line or mic mode)
|
Microphone Preamplifiers
|
|
Configuration:
|
Electronically balanced, with fully-balanced analog signal path
|
Gain:
|
10dB to 65dB in 1dB steps (0dBFS = -56dBu to -1dBu)
|
Gain accuracy:
|
±0.05dB
|
Input impedance:
|
5.5kR
|
THD
|
+10dB gain: -116dB at -0.1dBFS (0.00016%)
+40dB gain: -110dB at -0.1dBFS (0.00032%)
|
THD+n:
|
+10dB gain: -108dB at -0.1dBFS (0.00040%)
|
Equivalent input noise (EIN):
|
+30dB gain: -128.5dBu (0R source); -126.3dBu (150R source)
+40dB gain: -130.9dBu (0R source); -127.6dBu (150R source)
+50dB gain: -131.2dBu (0R source); -127.7dBu (150R source)
+60dB gain: -131.4dBu (0R source); -127.8dBu (150R source)
|
LF roll-off:
|
-0.05dB at 20Hz; -3dB at 5Hz
|
HF roll-off:
|
As per Analog Line Input data (dependent on fs)
|
CMRR:
|
50Hz/60Hz: >110dB at all gains
1kHz: >100dB at all gains
20kHz: >90dB at all gains
|
Phantom power:
|
+48V, switchable per channel
|
Instrument Preamplifiers
|
|
Configuration:
|
Unbalanced, high impedance buffer
|
Gain:
|
10dB to 65dB in 1dB steps, 18dB pad (0dBFS = -38dBu to 17dBu)
|
Gain accuracy:
|
±0.05dB
|
Input impedance:
|
1MR
|
Analog Line Outputs
|
|
Configuration:
|
Electronically balanced, with fully-balanced analog signal path
|
Output amplitude:
|
Switchable ‘+4dBu’ (0dBFS=+18dBu) or ‘-10dBV’ (0dBFS=+6dBu)
|
Output impedance:
|
100R balanced, 50R unbalanced
|
Unbalanced mode:
|
Automatic, with bootstrapping level compensation
|

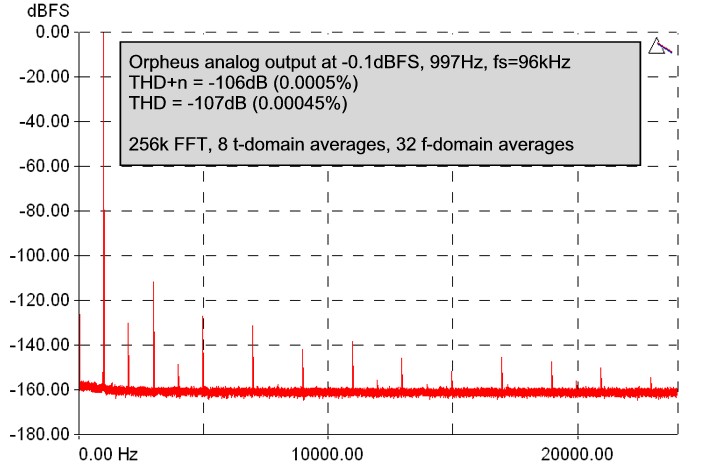

Total harmonic distortion:
|
-107dB (0.00045%, -0.1dBFS)
|
THD+n:
|
-106dB (0.00050%, -0.1dBFS)
|

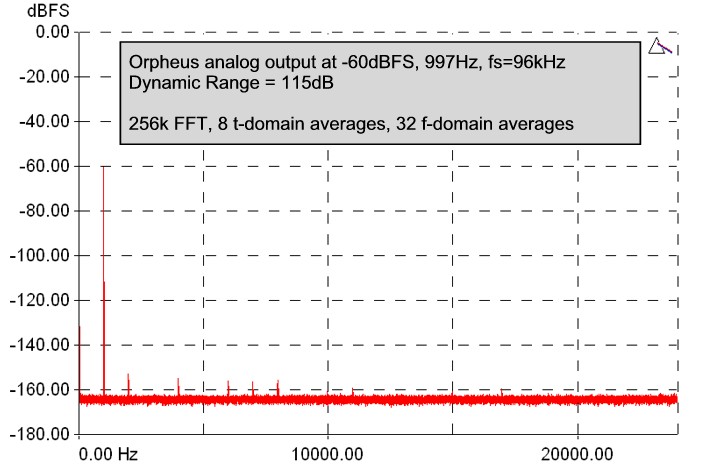

Dynamic range:
|
115dB (-60dBFS)
|
Gain accuracy:
|
±0.05dB
|
LF roll-off:
|
-0.05dB at 8Hz; -3dB at <1Hz
|
HF roll-off:
|
fs=44.1kHz: -0.05dB at 21.4kHz; -3dB at 22.0kHz
fs=48kHz: -0.05dB at 23.2kHz; -3dB at 23.9kHz
fs=96kHz: -0.05dB at 32.0kHz, -3dB at 47.8kHz
fs=192kHz: -0.05dB at 32.0kHz, -3dB at 76.0kHz
|
Output balance:
|
>50dB
|
Inter-channel cross-talk:
|
1kHz: <-135dB; 20Hz..20kHz: <-120dB.
|
Inter-channel phase:
|
10Hz..5kHz: ±0.4º, 5kHz..20kHz: ±0.25º, 20kHz..50kHz: ±0.5º.
|
Digital Input
|
|
Formats supported:
|
S/PDIF (RCA or TOSlink), ADAT, ADAT SMUX (TOSlink)
|
Sample rates supported:
|
S/PDIF (2 channel): 44k1, 48k, 88k2, 96k, 176k4, 192k
ADAT (8 channel): 44k1, 48k; ADAT SMUX (4 channel): 88k2, 96k
|
Channel Status:
|
Ignored
|
Word-length:
|
24 bits
|
AES3 operation:
|
Via S/PDIF RCA, using XLR-RCA adapter (supplied)
|
Sample-rate converter (SRC):
|
Selectable at S/PDIF input, allowing input at any sample rate
|
Bit-transparency:
|
Maintained (allows recording of Dolby or DTS streams)
|
Digital Output
|
|
Formats supported:
|
S/PDIF (RCA or TOSlink), ADAT, ADAT S/MUX (TOSlink)
|
Sample rates supported:
|
S/PDIF (2 channel): 44k1, 48k, 88k2, 96k, 176k4, 192k
ADAT (8 channel): 44k1, 48k; ADAT S/MUX (4 channel): 88k2, 96k
|
Channel Status:
|
Full implementation, Consumer (S/PDIF) or Professional (AES3)
|
Word-length:
|
24 bits, or reduction to 16 bits using flat TPDF dither or Prism Sound SNS (Super Noise-Shaping - four alternative shapes available)
|
AES3 operation:
|
Via S/PDIF RCA, using RCA-XLR adapter (supplied)
|
Sample-rate converter (SRC):
|
Selectable at S/PDIF output; output rate can be referenced to Wordclock, DI or local clock at 44k1, 48k, 88k2, 96k, 176k4 or 192k
|
Bit-transparency:
|
Maintained in 24 bit mode (allows playback of Dolby or DTS streams to external decoder)
|
Synchronization
|
|
System sample rates:
|
44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz or 192kHz
|
Synchronization sources:
|
Master: Local, Wordclock, DI (S/PDIF input) or ADAT
Slave: 1394 bus master (another FireWire interface or host computer)
|
Local clock accuracy:
|
+/-10ppm
|
Jitter rejection:
|
60dB/decade above 100Hz
|
Internal mixer delay:
(total analog in to out)
|
44.1k: 0.57ms; 48k: 0.52ms; 88k2: 0.20ms; 96k: 0.18ms; 176.4k: 0.09ms; 192k: 0.08ms
|
Physical
|
|
Dimensions:
|
Table-top (including feet): 440x290x50mm
1U rack-mount (including ears): 483x290x44.5mm
|
Weight:
|
3.7kg.
|
Mains voltage:
|
90VAC-250VAC, 50-60Hz
|
Power consumption:
|
35W
|
Fuse rating:
|
0.5A(T), 20mm, glass
|
Operating ambient:
|
0 to 35ºC, 85% maximum relative humidity
|
Performance Plots
Except where otherwise stated, audio performance data are typical, RMS, unweighted, 20Hz..20kHz figures, measured at 997Hz, using fs=96kHz and '+4dBu' sensitivity settings.
In keeping with our policy of continual development, specifications are subject to amendment without notice.
E&OE. All Trade Marks acknowledged.
|
