Mac installation

Parent chapter  Previous page  Next page



The Atlas Control Panel app can be installed on Macs with Intel processors.  You need a spare USB 2.0 or USB 3.0 port. You must have OS X 10.5 Leopard, or later.  No driver is required, since OS X can interface to Atlas directly.



The full installation procedure is as follows:



Connect your Atlas to the mains supply and to a USB port on your Mac with the cables provided.



Insert the installation disc into a DVD-ROM drive on your Mac, or else locate the folder containing the downloaded package.



Double-click on the "Prism Sound USB Audio" package.

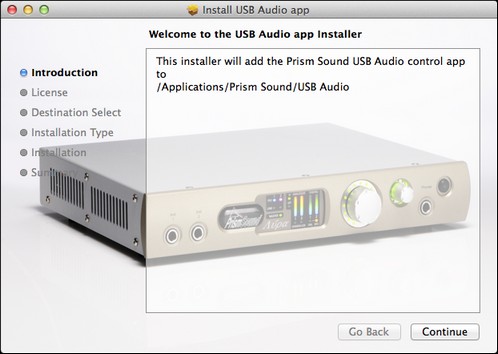

A dialogue box will guide you through the installation process; click 'Continue':

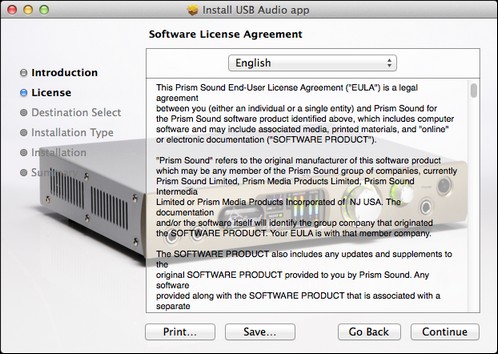

A copy of the EULA will appear, which you should read:





Agree to the EULA by clicking 'Continue'.

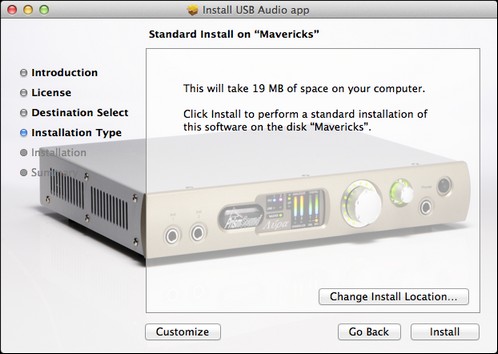

Having selected an install destination if required, click 'Install' to perform the installation:





You may need to enter an administrator's name and password.

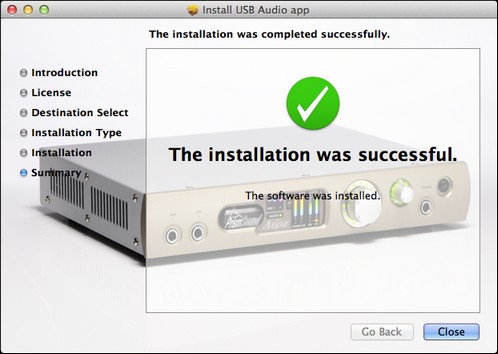

The installation process will then complete:





When software installation is complete, close the dialogue box.



The Atlas device's ports should now be visible in Audio/MIDI Setup as Core Audio ports.



Remember to register your Atlas at http://www.prismsound.com/register.
