Signal path architecture

Parent chapter  Previous page  Next page

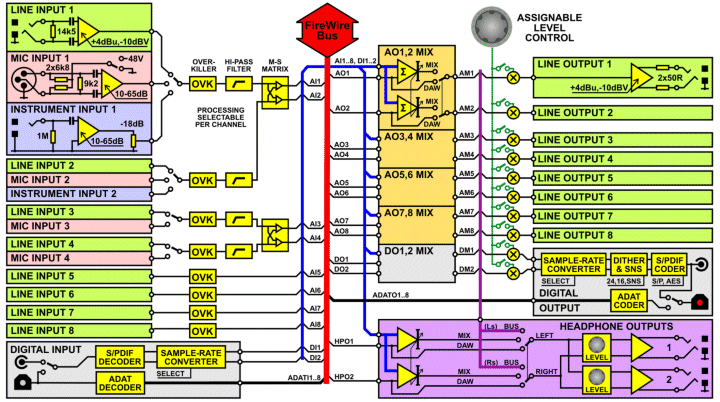

The figure above is a simplified block diagram of the Orpheus audio signal paths.


Orpheus is basically a sound card, with all inputs made available to the host computer via the FireWire bus, and all outputs likewise driven from the FireWire bus.  However, Orpheus' signal paths contain a range of enhanced processing and mixing functions, which are described in the following sections.
