Slithers: 16 Channel AES Digital

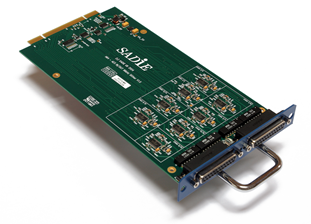

16 Channel AES modular I/O expansion card

Originally designed as an input/output card for the popular PCM-H64 system, the AES16 slither card is also used in the LRX2 location recorder. This card provides 16 channels of high quality digital interface to full AES-3 specification and at all standard sample rates up to 96kHz.¹

The card plugs directly into the PCM-H64 or LRX2 system and the interconnections are made available on a 25way female D-type. Cables can be supplied as an optional extra.

¹ Please note that 192kHz operation is not currently fully supported in the LRX2.

SPECIFICATIONS - OUTPUTS
16 channels of transformer balanced, isolated digital audio on D-type 25 way female connector
Protocols	S/PDIF (consumer, IEC 958) AES/EBU (professional, AES3-1992)
Sample Rates	32kHz to 96kHz ±10%
Connector	25 way D-type female
Output level - unterminated	10V p-p
Output level - 110Ω terminated	5V p-p
Source impedance	110Ω ±10%
Data Jitter	<7ns p-p

SPECIFICATIONS - INPUTS
16 channels of transformer balanced, isolated digital audio on D-type 25 way female connector
Protocols	S/PDIF (consumer, IEC 958) AES/EBU (professional, AES3-1992)
Sample Rates	32kHz to 96kHz ±10%
Connector	25 way D-type female
Input levels	500mV to 10V p-p
Input impedance	110Ω
Equalisation	None fitted

Specifications subject to amendment.
