Slithers: 16 Channel D/A

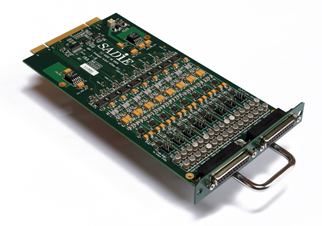

16 channel D/A converter modular I/O expansion card

Originally designed as an input card for the popular PCM-H64 system, the DAC16 slither card is also used in the LRX2 location recorder. This card provides 16 channels of high quality digital to analogue conversion at all standard sample rates up to 192kHz with 24bit precision.¹

The card plugs directly into the PCM-H64 or LRX2 system and the inputs are made available on a 25way female D-type. Cables can be supplied as an optional extra.

¹ Please note that 192kHz operation is not currently fully supported in the LRX2.

SPECIFICATIONS
16 channels of electronically balanced analogue output on D-type 25 way connector. Break-out cables used to break signals out to XLR. If the output signal is terminated to a single ended output +6dB is added to the signal.
Sample Rates	32kHz to 192kHz¹
Conversion	24-bit 64x over-sampling ΔΣ
Connector	25 way D-type
Nominal level from peak digital audio (sine)	+18dBu, +21dBu, +24dBu (jumper selectable)
Output impedance	50Ω balanced, DC coupled
Frequency Response	6Hz - 24kHz, ±0.5dB (48kHz sample rate, +18dBu output)

SPECIFICATIONS Cont.
THD+N Relative	< -100dB (0.001%) 1kHz, +18dBu output, 22Hz - 22kHz bandwidth, unweighted, 48kHz sampling rate
Cross-talk	-105dB (1kHz, channel 1 to 2)
SNR	-105dBFS (1kHz, +18dBu input, 22kHz bandwidth)
Dynamic Range	128dB (1kHz, +18dBu input, 22kHz bandwidth)

Specifications subject to amendment.
